LEVELPARKER 590

The fully automatic space miracle Levelparker 590: space saving parking with single row arrangement on 2 to 5 parking levels without additional ramps or driveways.

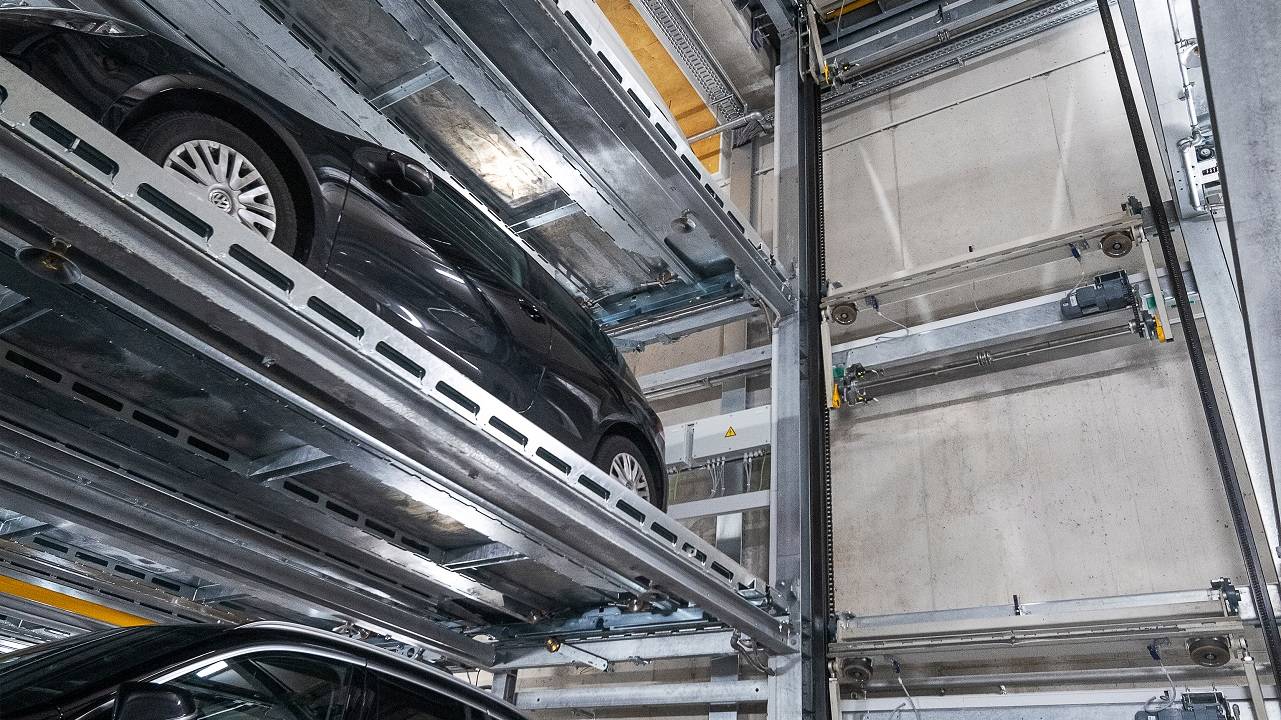

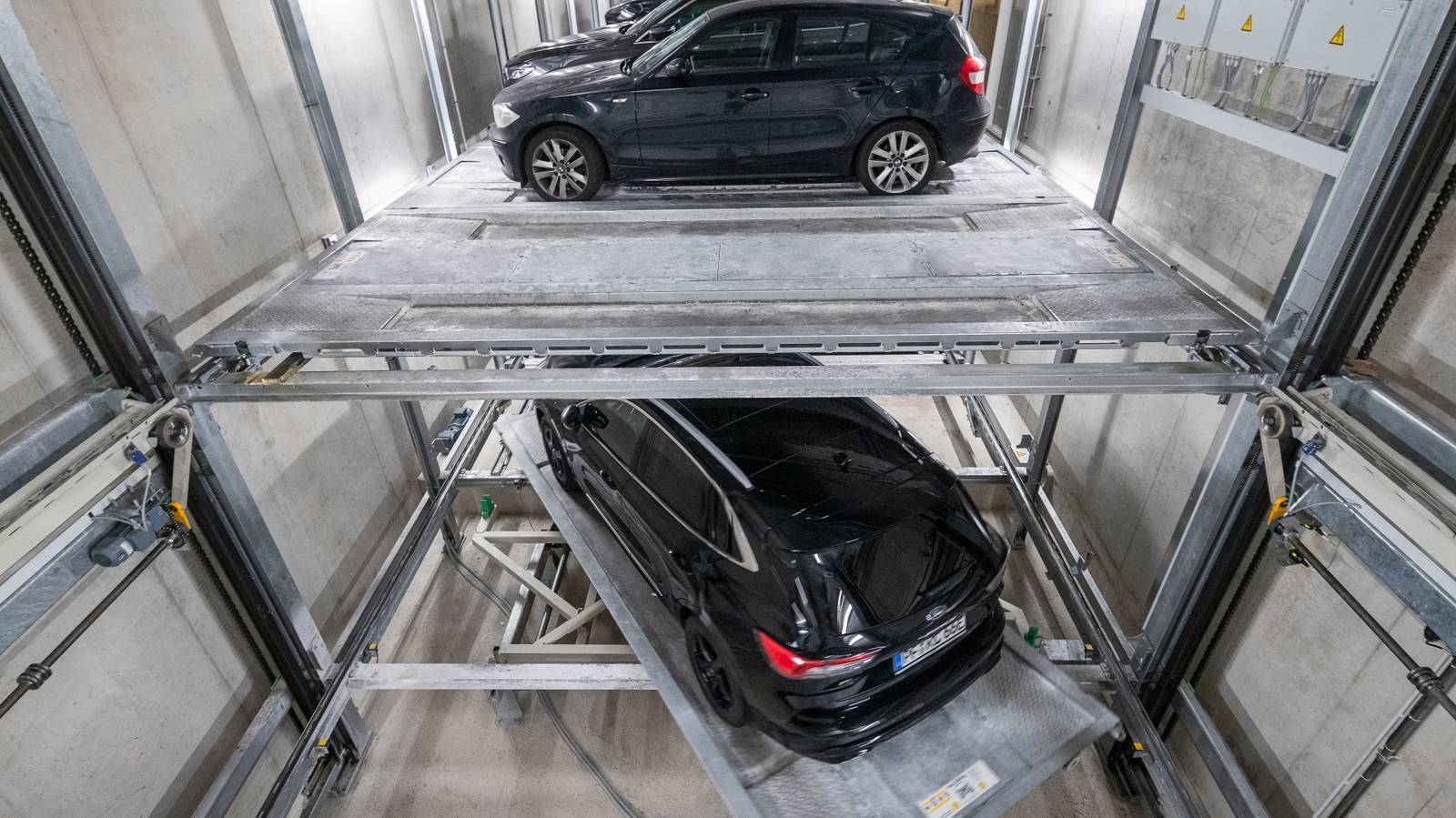

The full automatic Levelparker 590 for 10 to 50 car parking places in 2 to 5 levels above each other with single row arrangement. This single-platform row system equipped with vertical lifts provided at each end, is arranged on 2 to a maximum of 5 levels above each other, and moves in circular fashion through the rows. A space-saving parking arrangement is possible along a single platform row, without extra space being required for ramps or machine tracks. It is also possible to install a turntable in order to position the vehicles so that they are ready to be retrieved from parking in driving direction.

Specifications

  • For small footprint area
  • Safe for user and cars (no narrow ramps, dark stairs, no damage of theft or vandalism)
  • No need for ramps and driving lanes
  • No costly illumination and ventilation necessary
  • Variation options for individual project requirements
  • Integrated turntable option
  • For car weight up to 2,500 kg, higher loads are possible after consulting WÖHR
  • Easy operation with different control options, from RFID chip to remote control
  • Following the idea of "Green-Parking"
